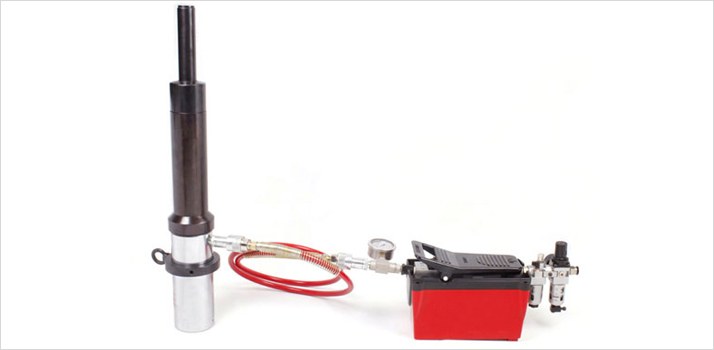

| Air Hydraulic Stub Puller |
|
|
|
|
 |
| Used for quick and safe removal of tube stubs from tube sheet. It is extremely compact, durable and is a lightweight, portable package very useful in confined areas. |
| |
| Features of the Air Hydraulic Stub Puller: |
 |
Air/hydraulic pump. |
|
Improved productivity and better operator control through foot pedal. |
|
Extremely compact, durable, lightweight and portable package that is very useful in confined areas. |
|
Makes pulling tubes faster and easier. |
|
Quick and easy arrangement to reduce downtime. |
|
Lowest priced stub puller system available. |
|
An Hydraulic Stub Puller is intrinsically safe and air operated for use in explosive environments. |
|
| |
| Model Available: ASP-1008 |
| |

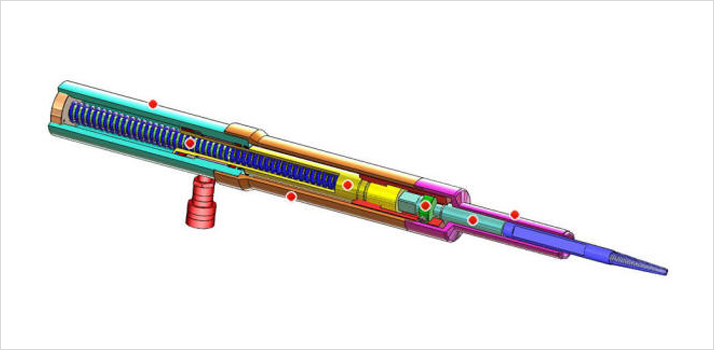

| Stub Puller Cylinder: |
| Model |
AHSP-4 |
AHSP-9 |
| Extraction Load (Ton) |
4 |
9 |
| Recommended Tube Sizes |
Up to 3/4” OD |
Up to 1.1/4” OD |
| Overall Dimension (mm) L x Ø |
550 x Ø65.0 |
550 x Ø104.0 |
| Stroke (mm) |
150 |
150 |
| Pulling Speed Secs. / Stroke |
15 |
30 |
| Weight (kg) with accessories |
9.0 |
18.5 |
|
| |
 |
| |
 |
|
