| Cleaning Tools |
|
|
|
|
| Cleaning Tools 1" & UP I.D. |

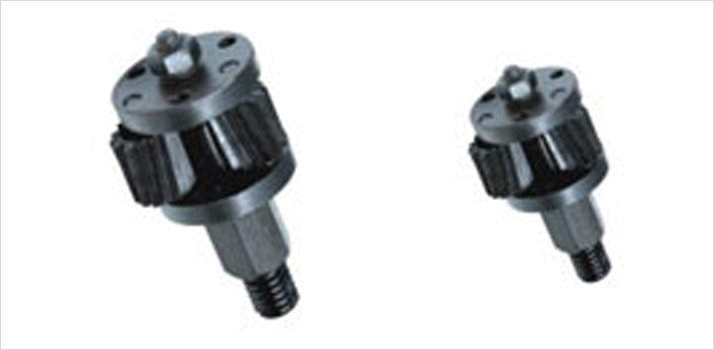

| Cylinder Cutter Tools |
 |
| |
| These tools are used typically in boilers and other larger tubes that have a light to medium deposit. These tools use the Powertech patented ergonomic cutting wheels that ensure the same tooth of the cutter wheel does not touch the same spot when cleaning. This prevents grooves being formed in the tube scale. The cutters 'fly out' when the tool is rotated and perform cleaning action. |
| |
| Tube I.D. |
Cylinder Cutter
Tool Model |
Spare Cylinder
Cutter Model |
| inch |
mm |
| 1.7/16-1.7/8 |
36.5-47.6 |
CCT-1438 |
CYC-1438 |
| 1.13/16-2.7/8 |
46.0-73.0 |
CCT-1813 |
CYC-1438 |
| 2.3/16-3.3/16 |
55.5-81.0 |
CCT-2188 |
CYC-2188 |
| 3.1/8-3.7/8 |
79.4-98.4 |
CCT-3125 |
CYC-2188 |
|
| |
| |

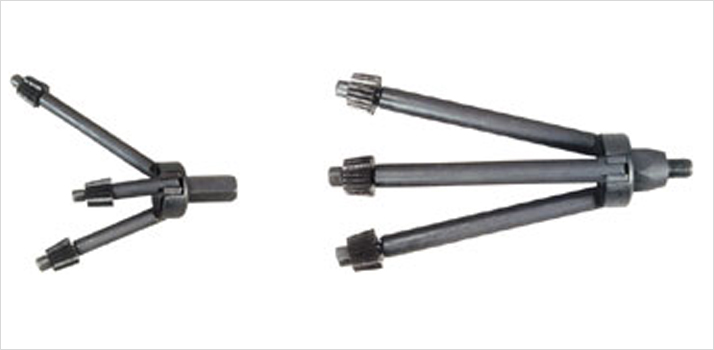

| Wing Tools - Stiff Arm Cutter |
 |
| |
| These tools use long stiff arms with Powertech patented cone cutters on their ends, that spread out when rotated. These tools are used to clean light to medium deposits in large diameter tubes and pipes. |
| |
| Tube I.D. |
Wing Tool-Stiff Arm
Cutter Model |
Spare Cone
Cutter Model |
| inch |
mm |
| 1.11/16-4 |
42.9-101.6 |
WTS-1688 |
SCT-937 |
| 3.15/16-6.1/2 |
100.0-165.1 |
WTS-3938 |
SCT-937 |
|
| |
| |
| Wing Tool - Flexible Arm Cutter |
 |
| |
| These tools are similar in operation to the Stiff Arm Winged Tools, but the Powertech patented Cone Cutters are attached onto flexible arms. These tools are used in typically very large vertical pipes and are used in cleaning pipes from top to bottom. |
| |
| Tube I.D. |
Wing Tool-Flexible Arm
Cutter Model |
Spare Cone
Cutter Model |
| inch |
mm |
| 3.15/16-12 |
100.0-309.0 |
WTF-3938 |
SCT-937 |
|
| |
| |

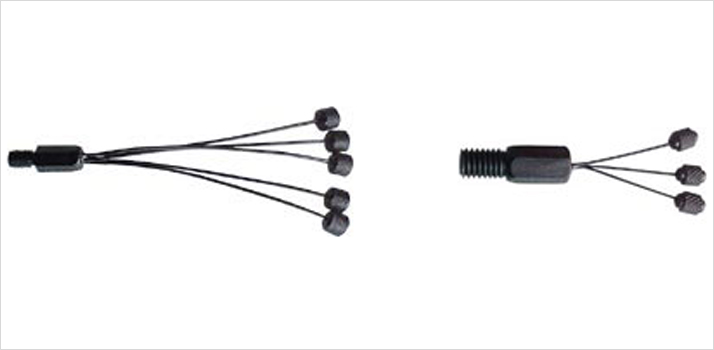

| Wing Tools - Flexible Arm-Carbide Ball Tip |
 |
| |
| These tools are similar in operation to the Flexible Arm Cutter Wing Tools except these use carbide balls for removing light scale in large diameter tubes and pipes. |
| |
| Tube I.D. |
Wing Tool-Flexible Arm
Carbide Ball Tip Model |
Number of
Balls Used |
| inch |
mm |
| 15-16-2.1/16 |
23.8-52.4 |
WTC-938 |
4 |
| 1.15/16-4.1/16 |
49.2-103.2 |
WTC-1938 |
6 |
| 3.15/16-8.1/16 |
100.0-204.8 |
WTC-3938 |
6 |
|
| |
 |
