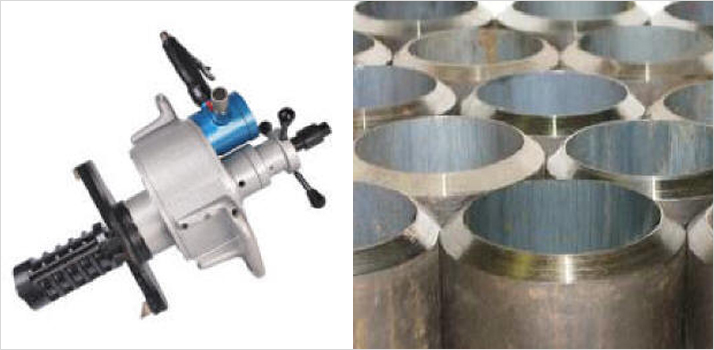

| Pipe Beveller 100-306mm FM-12000 |
|
|
|
|
 |
| |
| The FM-12000 gives a combination of sheer power and portable design to allow the operator to bevel and face pipe up to 306mm I.D. This machine provides the facility to Bevel, Face and Counter Bore in one operation. |
| |
| Drive |
Pneumatic |
Electric |
| Locking Range (mm) ID. |
100 - 306 |
100 - 306 |
| Ideal Speed (RPM) |
35 |
31 |
| Torque (Nm) |
180 |
230 |
| Feeding Stroke (mm) |
50 |
50 |
| Pneumatic Power (HP) |
1.88 |
- |
| Air Consumption (cfm) |
60 |
- |
| Air Pressure (psi) |
90 |
- |
| Electric Power (watts) |
- |
1400 |
| Weight (kg) |
43.0 |
44.0 |
|
| |
 |
|
