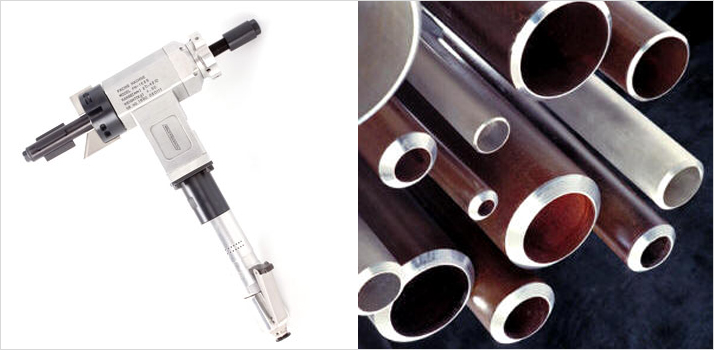

| Pipe Beveller 20 - 42mm FM-1625 |
|
|
|
|
 |
| |
| The FM-1625 is a lightweight and powerful machine for Facing, Bevelling and Weld preparation. It is compact, easy to handle and quick to set up. It is used for jobs in restricted access areas. Used in environments on heat exchangers and condensers. |
| |
| Drive |
Pneumatic |
Electric |
| Locking Range (mm) ID. |
20 - 42 |
20 - 42 |
| Speed (RPM) |
240 |
178 |
| Torque (Nm) |
27.5 |
45.0 |
| Feeding Stroke (mm) |
23 |
23 |
| Pneumatic Power (HP) |
0.45 |
- |
| Air Consumption (cfm) |
16 |
- |
| Air Pressure (psi) |
90 |
- |
| Electric Power (watts) |
- |
59.5 |
| Weight (kg) |
4.5 |
5.5 |
|
| |
 |
|
