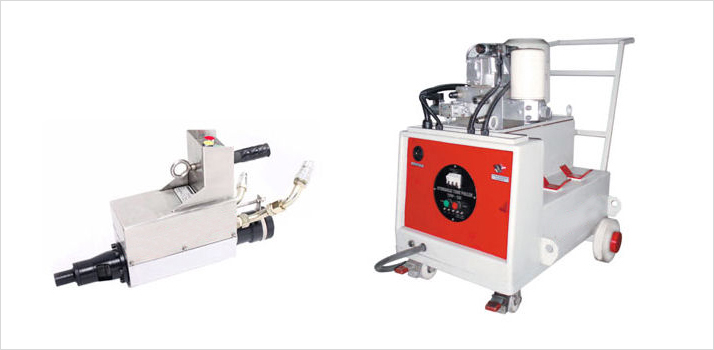

Continuous Hydraulic Tube Pulling System
This unit is designed to pull tubes from 3/8" OD to 4.0" OD at speeds up to 5.6 meters per minute. |
| |
| Features of the Continuous Tube Pulling System |
 |
Available in either Electric or Pneumatic Power Packs. |
|
The Hydraulic Tube Pulling Gun communicates with the Power Pack via a 9 volt remote control. This ensures safety and eliminates the need of electrical hard wiring between the pump and the gun. |
|
Hydraulic continuous tube pulling up to 3.0" and up to 4.0" for tube stubs. |
|
Low set up time and ease of operation. |
|
Automatic slow start feature for the breakout of the tube from the tubesheet. |
|
Interchangeable tube pulling guns with the same power pack. 15 Tons for light duty and high speed removal. 30 tons for heavy duty tube removal and 45 tons for tubes up to 3.0" and stubs to 4.0"OD. |
|
One man operation and cost effective solution saving time in man hours and labour force. |
|
| |
 |
|

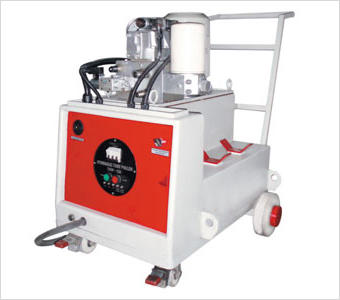

| Tube Puller Power pack |
|
Sizes available for Tube puller power Pack: |
| |
3/8" OD to 3.0" OD. - 4.0" for Pulling tube stubs |
|
|
Models available for Tube Puller Power Pack: |
| |
TPP - 30, TPP - 50, TPP - 75, PPP - 50 (Pneumatic) |
|
|
|
 |
|

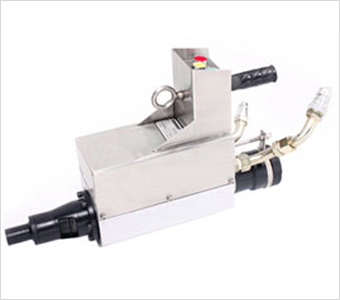

| Hydraulic Tube Pulling Guns |
|
Sizes available for Hydraulic Tube Pulling Guns: |
| |
3/8" OD to 4.)"OD. |
|
|
Models available for Electrical Power Packs: |
| |
HPG-15, HPG-30, HPG-45 |
|
|
Models available for Pneumatic Power Packs: |
| |
AHPG-15, AHPG-30, AHPG-45 |
|
|
|
| |
 |
|
