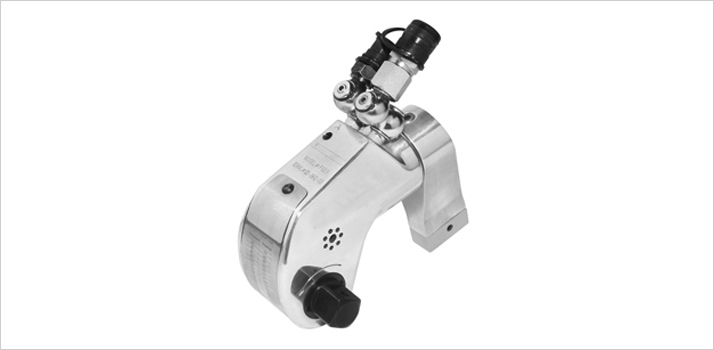

| PSD Series |
|
|
|
|
 |
| |
| Technical Data |
| Model No. |
PSD-0.75 |
PSD-1 |
PSD-2 |
PSD-3 |
PSD-5 |
PSD-7 |
| Square Drive |
3/4” |
3/4” |
3/4” |
1” |
1.1/2” |
1.1/2” |
Min. Torque Kg-m
(Ft/Lbs) |
10
(72) |
13
(94) |
17
(122) |
45
(330) |
78
(565) |
102
(740) |
Max. Torque Kg-m
(Ft/Lbs) |
106
(766) |
126
(911) |
175
(1,265) |
460
(3,330) |
774
(5600) |
1020
(7,400) |
| Output Accuracy |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
| Repeatability |
100% |
100% |
100% |
100% |
100% |
100% |
| Duty Cycle |
100% |
100% |
100% |
100% |
100% |
100% |
Tool Weight
Kg/(Lbs) |
1.0 /
(2.20) |
1.25 /
(2.75) |
2.50 / (5.80) |
4.20/
(9.30) |
8.40 /
(18.60) |
8.90 /
(19.60) |
|
| |
| Model No. |
PSD-11 |
PSD-15 |
PSD-20 |
PSD-27 |
PSD-60 |
PSD-100 |
| Square Drive |
1.1/2” |
2.1/2” |
2.1/2” |
2.1/2” |
2.1/2” |
3.1/2” |
Min. Torque Kg-m
(Ft/Lbs) |
152
(1,100) |
204
(1,475) |
267
(1,931) |
375
(2,720) |
802
(5,800) |
1390
(10,053) |
Max. Torque Kg-m
(Ft/Lbs) |
1520
(11,000) |
2040
(14,755) |
2852
(20,625) |
3762
(27,200) |
8020
(58,000) |
13900
(100,538) |
| Output Accuracy |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
| Repeatability |
100% |
100% |
100% |
100% |
100% |
100% |
| Duty Cycle |
100% |
100% |
100% |
100% |
100% |
100% |
Tool Weight
Kg/(Lbs) |
13.6 / (30.00) |
22.0 / (48.50) |
28.5 / (62.70) |
32.7 / (72.00) |
60.8 / (133.70) |
109 / (240.00) |
|
| |
| PSD Series Specifications |
 |
| |

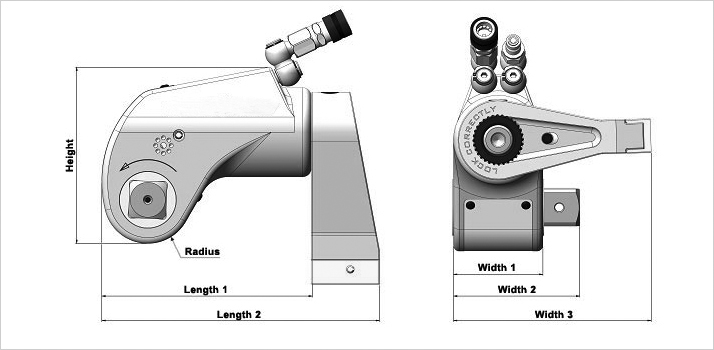

| Dimensions |
Model
No. |
PSD-0.75 |
PSD-1 |
PSD-2 |
PSD-3 |
PSD-5 |
PSD-7 |
| mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
| Height |
78 |
3 |
88 |
3.5 |
105 |
4.15 |
135 |
5.3 |
163 |
6.4 |
182 |
7.17 |
| Length1 |
120 |
4.75 |
94 |
3.7 |
121 |
4.76 |
153 |
6.02 |
194 |
7.62 |
208 |
8.2 |
| Length2 |
91.5 |
3.6 |
123 |
4.8 |
160 |
6.3 |
213 |
8.38 |
254 |
10 |
291 |
11.5 |
| Radius |
18.7 |
0.74 |
20 |
0.78 |
25 |
0.98 |
33 |
1.28 |
41 |
1.62 |
45 |
1.78 |
| Width 1 |
40 |
1.57 |
42 |
1.65 |
51 |
2.01 |
67 |
2.64 |
82 |
3.22 |
92 |
3.61 |
| Width 2 |
52.6 |
2 |
65 |
2.55 |
72 |
2.81 |
93 |
3.67 |
116 |
4.55 |
128 |
5.05 |
| Width 3 |
86.7 |
3.4 |
87 |
3.43 |
118 |
4.63 |
149 |
5.85 |
175 |
6.89 |
204 |
8.03 |
|
| |
Model
No. |
PSD-11 |
PSD-15 |
PSD-20 |
PSD-27 |
PSD-60 |
PSD-100 |
| mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
| Height |
198 |
7.81 |
232 |
9.15 |
237 |
9.35 |
259 |
10.2 |
292 |
11.5 |
349 |
13.7 |
| Length1 |
227 |
8.95 |
295 |
11.6 |
274 |
10.8 |
294 |
11.6 |
367 |
14.5 |
469 |
18.5 |
| Length2 |
313 |
12.3 |
373 |
14.7 |
390 |
15.3 |
415 |
16.4 |
522 |
20.6 |
619 |
24.4 |
| Radius |
50 |
1.96 |
58.7 |
2.3 |
58 |
2.29 |
63 |
2.46 |
79 |
3.1 |
95 |
3.74 |
| Width 1 |
100 |
3.94 |
100 |
3.93 |
124 |
4.86 |
134 |
5.28 |
167 |
6.58 |
200 |
7.87 |
| Width 2 |
137 |
5.38 |
158 |
6.2 |
183 |
7.19 |
194 |
7.65 |
226 |
8.9 |
260 |
10.3 |
| Width 3 |
225 |
8.86 |
252 |
9.93 |
275 |
10.8 |
293 |
11.5 |
372 |
14.6 |
412 |
16.2 |
|
| |
 |
|
