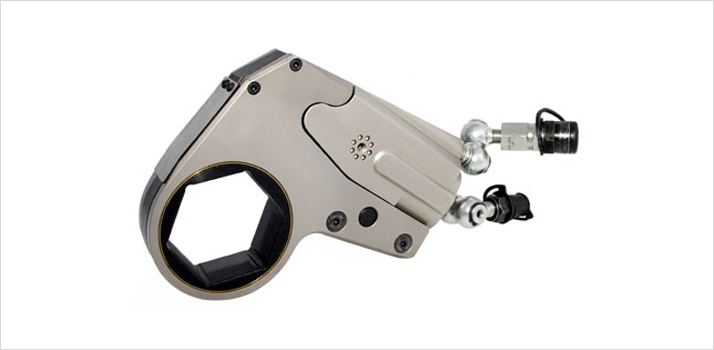

PXD Series

Technical Data
Model No. PXD-0.75 PXD-1 PXD-1.5 PXD-2 PXD-4 PXD-8 PXD-16 PXD-32 PXD-45
Tool Hex
from		 13mm /
½”		 13mm /
1/2”		 19mm/
¾”		 19mm /
3/4”		 25mm /
1”		 50mm /
1.7/8		 65mm /
2.5/8”		 80mm /
3.1/8”		 80mm /
2.7/16”
to 41mm /
1.5/8”		 41mm /
1.5/8”		 46mm /
1.5/8”		 60mm /
2.3/8”		 80mm /
3.1/8”		 105mm /
4”		 115mm /
4.5/8”		 155mm /
6.1/8”		 155mm /
6.1/8”
Min. Torque
Kg-m (Ft/Lbs)		 5.6
(41)		 6
(45)		 14
(100)		 26
(192)		 54
(395)		 115
(830)		 245
(1,560)		 445
(3,220)		 658
(4,865)
Max. Torque
Kg-m (Ft/Lbs)		 68
(490)		 77
(560)		 137
(995)		 260
(1,928)		 540
(3,950)		 1192
(8,630)		 2293
(16,600)		 4924
(35,650)		 6410
(47,380)
Output Accuracy +/-3% +/- 3% +/-3% +/- 3% +/- 3% +/- 3% +/- 3% +/- 3% +/- 3%
Repeatability 100% 100% 100% 100% 100% 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100% 100% 100% 100% 100% 100%
Corrosion Protection
Standard
Cylinder Weight
Kgs / (Lbs)		 0.38 /
(0.84)		 0.50 /
(1)		 0.55 /
(1.2)		 1.59 /
(3.50)		 2.73 /
(6.00)		 5.32 /
(11.70)		 7.27 /
(16.00)		 11.82 /
(26.00)		 13.7/
(30.2)
Link Weight
from Kgs / (Lbs)		 0.47 /
(1)		 0.50 /
(1)		 0.60 /
(1.3)		 1.09 /
(2.40)		 2.45 /
(5.40)		 5.41 /
(11.90)		 9.55 /
(21.00)		 13.18 /
(29.00)		 13.18 /
(29.00)
to Kgs / (Lbs) 0.47 /
(1)		 0.50 /
(1)		 0.90 /
(2.0)		 1.59 /
(3.50)		 3.45 /
(7.60)		 6.59 /
(14.50)		 12.73 /
(2.00)		 17.95 /
(39.50)		 17.95 /
(39.50)

PXD Series Specifications

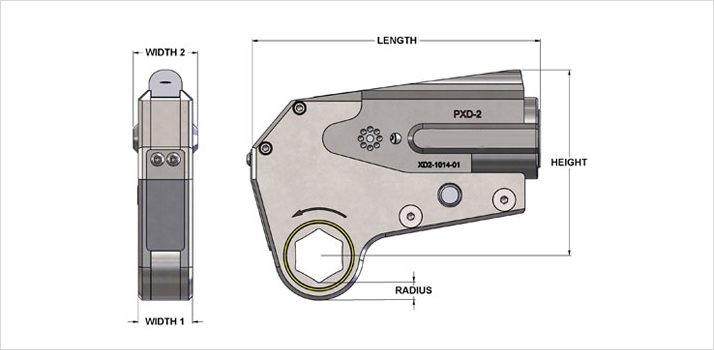

Dimensions
Model No. PXD-0.75 PXD-1 PXD-1.5 PXD-2 PXD-4
mm inch mm inch mm inch mm inch mm inch
Length 108.00 4.25 111.00 4.37 107.00 4.20 167.00 6.57 203.20 8.00
Height 82.60 3.25 82.60 3.25 87.00 3.40 103.00 4.05 144.00 5.66
Width1 18.00 0.70 20.40 0.80 28.00 1.10 31.80 1.25 41.80 1.64
Width2 18.00 0.70 24.25 0.95 28.00 1.10 38.00 1.49 47.40 1.86
Radius 5.80 0.23 5.80 0.23 7.50 0.30 9.30 0.36 11.85 0.46

Model No. PXD-8 PXD-16 PXD-32 PXD-45
mm inch mm inch mm inch mm inch
Length 253.00 9.96 330.00 13.00 390.00 15.35 450.00 17.71
Height 179.50 7.06 193.80 7.63 278.00 10.94 278.00 10.94
Width1 52.40 2.06 64.00 2.51 82.35 3.24 82.35 3.24
Width2 58.00 2.28 70.00 2.75 92.00 3.62 124.00 4.88
Radius 13.90 0.54 16.80 0.66 23.75 0.94 23.75 0.94
