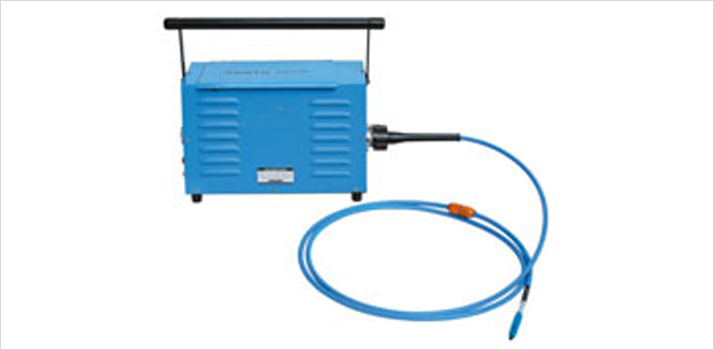

| PORTO Portable Electric Tube Cleaners |
|
|
|
|
 |
| |
| The 'PORTO' is built for users to whom a small size and easy transportation means they can clean more tubes faster. Used to clean 1/4" - 1" I.D. tubes in chillers, condensers, evaporators, heat exchangers. The flexible shaft rotates at 1760 rpm as water feeds through the nylon casing to the cleaning tool. As the tool removes the deposits, the water flow flushes them out. A solenoid valve ensures that water flows only when the machine is running. Water consumption can be regulated as needed. |
| |
| Features: |
 |
Compact and portable for use in multiple locations. |
|
Easy connect and disconnect of various shafts and cleaning tools. |
|
Foot Switch enables operator to concentrate on cleaning operation. |
|
Water moving through shaft flushes out deposits already dislodged by cleaning tools. |
|
| |
| Tube I. D. |
Tube Cleaner
Model No. |
Motor Power |
Motor
Speed RPM |
Weight |
Dimensions |
| inch |
mm |
HP |
kW |
lbs. |
Kg. |
High |
Wide |
Deep |
| 1/4-1 |
6.4-25.4 |
PORTO |
1/2 |
0.40 |
1760 |
36 |
16 |
10"(254mm) |
11"(279mm) |
18"(457mm) |
|
|
All units available in your choice of:
110v 60 Hz, 110v 50Hz - 9 Amps. and 220v 60Hz, 220v 50Hz - 4.5 Amps. |
| |
 |
|
