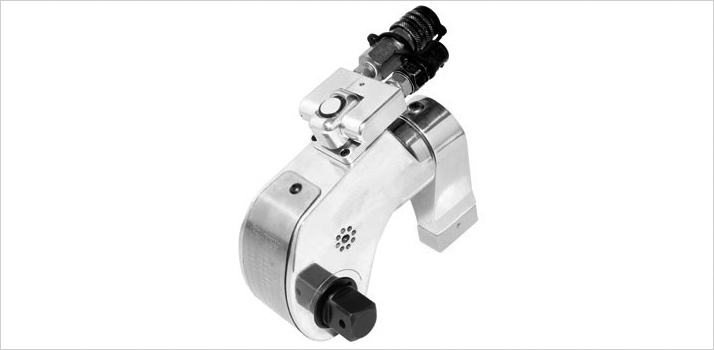

| Uniswivel Series |
|
|
|
|
 |
| |
| Technical Data |
| Model No. |
UNS-2 |
UNS-3 |
UNS-5 |
UNS-7 |
UNS-11 |
| Square Drive |
3/4” |
1” |
1.1/2” |
1.1/2” |
1.1/2” |
Min. Torque
Kg-m (Ft/Lbs) |
17 (127) |
45 (330) |
77 (565) |
102 (740) |
152 (1,100) |
Max. Torque
Kg-m (Ft/Lbs) |
175 (1,265) |
460 (3,330) |
774 (5,600) |
1020 (7,400) |
1520 (11,000) |
| Output Accuracy |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
+/-3% |
| Repeatability |
100% |
100% |
100% |
100% |
100% |
| Duty Cycle |
100% |
100% |
100% |
100% |
100% |
Tool Weight
Kg / Lbs |
1.77 / (3.90) |
4.09 / (9.00) |
8.6 / (18.9) |
9.0 / (19.8) |
13.5 / (29.6) |
|
| |
 |
| |

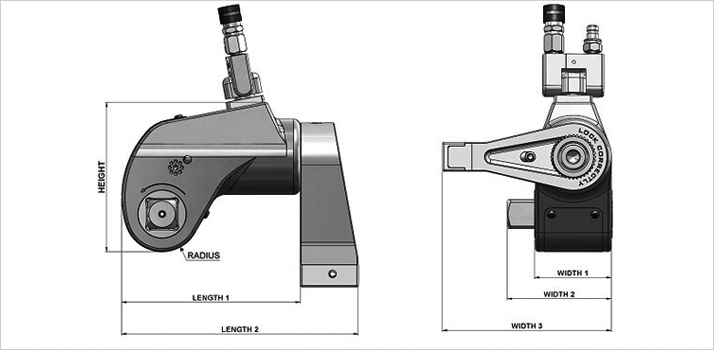

| Dimensions |
Model
No. |
UNS-2 |
UNS-3 |
UNS-5 |
UNS-7 |
UNS-11 |
| mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
| Height |
105 |
4.15 |
135 |
5.30 |
163 |
6.40 |
182 |
7.17 |
198 |
7.81 |
| Length1 |
121 |
4.76 |
153 |
6.02 |
194 |
7.62 |
208 |
8.20 |
227 |
8.95 |
| Length2 |
160 |
6.30 |
213 |
8.38 |
254 |
10.00 |
291 |
11.50 |
313 |
12.30 |
| Radius |
25 |
0.98 |
33 |
1.28 |
41 |
1.62 |
45 |
1.78 |
50 |
1.96 |
| Width1 |
51 |
2.01 |
67 |
2.64 |
82 |
3.22 |
92 |
3.61 |
100 |
3.94 |
| Width2 |
72 |
2.81 |
93 |
3.67 |
116 |
4.55 |
128 |
5.05 |
137 |
5.38 |
| Width3 |
118 |
4.63 |
149 |
5.85 |
175 |
6.89 |
204 |
8.03 |
225 |
8.86 |
|
|
| Note: All tool weights include Couplers, Swivels, Reaction Arm and Internal Oil. |
| |
 |
|
