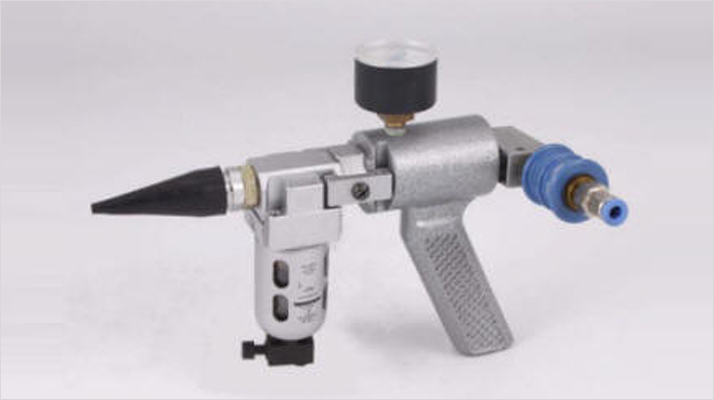

| Vacuum Leak Detector Kit for Identifying Leaking Tubes in Pressure Vessels |
|
|
|
|
 |
| |
| Features of the Vacuum Leak Detector: |
 |
Only one tool necessary for testing multiple tube sizes. |
|
Built-in easy to read vacuum gauge. |
|
Multifold exhaust system for quiet operation. |
|
Lightweight and easy to use. |
|
| |
| Sizes Available: 1/4 " O.D. TO 3 " O.D. |
|
| Models Available: PVLD-3000 |
| |
| Tube Seals Available: |
| Part No |
Tube OD Size |
| P-760 |
(6.3mm) 1/4" - (19.5mm) 3/4" |
| P-1250 |
(15.9mm) 5/8" - (31.7mm) 1.1/4" |
| P-2000 |
(28.6mm) 1.1/8" - (50.8mm) 2.0" |
| P-3000 |
(47.6mm) 1.7/8" - (76.2mm) 3.0" |
|
| |
 |
| |
| Operating Instructions: |
 |
|
| Connect air supply to the gun Plug both ends of the tube to be tested with Plugging 'T' handle at one end and vacuum gun at other end. |
| |
 |
|
| Operate slide valve and allow creation of a vacuum in the tube. |
| |
 |
|
| Shut off the slide value when vacuum gauge reaches to the desire pressure. Hold for a few seconds. If gauge shows steady pressure there is no leak. |
| |
 |
|
| If there is a pressure drop, it indicates a tube with a leak. |
| |
| Specifications: |
|
Covers wide range of tubes with one unit [(tube sizes : 1/4” (6.3mm) to 3” (76.2mm)]. |
|
Requires 90 psi (6.0 bar) compressed air. |
|
Carrying case measures : 16”x12”x4” (410x300x85 mm). |
|
Tool weight : 4.4 lbs (2 kg). |
|
Approximate shipping weight : 9.24 lbs (4.2 kg). |
|
| |
 |
| |
 |
