| 'WA' and 'SA' Type |
|
|
|
|
| Sugar Mill Cutter Heads |

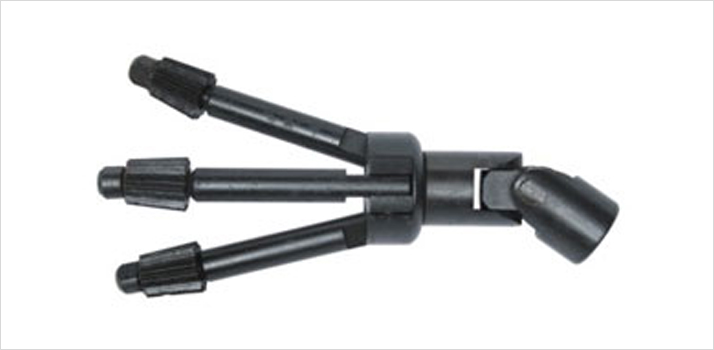

| 'WA' TYPE CUTTER HEADS - for Tubes/Pipes 1.1/2"-4" (38.1mm-101.6mm) I.D. |
 |
| |
| These Cutter Heads produce excellent results in curved or straight tubes. Pivoted arms of cutter Heads swing out by centrifugal force so that the cutters contact every part of the tube wall. |
| |
| Model No. |
Tube I.D. |
Cone Cutter
Set of 3 Nos. |
Spare Arms |
Universal Joint |
| inch |
mm |
Model |
Model |
Model |
| WA-12 |
1.1/2 |
38.1 |
WAL-1 |
WAA-1 |
WAUJ-1 |
| WA-14 |
1.3/4 |
44.5 |
WAL-1 |
WAA-1 |
WAUJ-1 |
| WA-16 |
2 |
51.0 |
WAL-1 |
WAA-1 |
WAUJ-1 |
| WA-18 |
2.1/4 |
57.1 |
WAL-2 |
WAA-1 |
WAUJ-2 |
| WA-20 |
2.1/2 |
63.5 |
WAL-2 |
WAA-1 |
WAUJ-2 |
| WA-22 |
2.3/4 |
70.0 |
WAL-2 |
WAA-1 |
WAUJ-2 |
| WA-24 |
3 |
76.2 |
WAL-3 |
WAA-2 |
WAUJ-2 |
| WA-28 |
3.1/2 |
88.9 |
WAL-3 |
WAA-2 |
WAUJ-2 |
| WA-32 |
4 |
101.6 |
WAL-4 |
WAA-2 |
WAUJ-2 |
|
| Above prices are for Tool Heads with 3 Pivoted Arms with 3 Cone but without U-joint. |
| |
| |

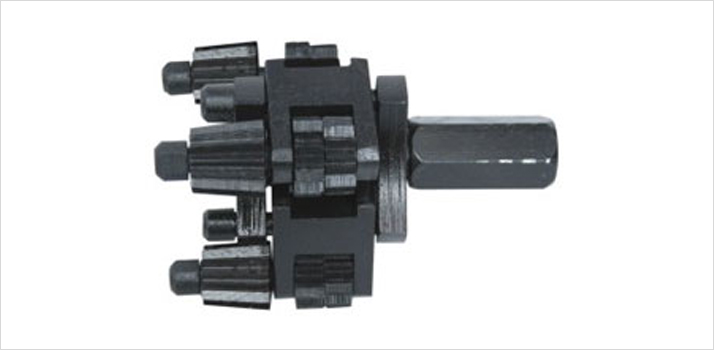

| 'SA' TYPE CUTTER HEADS - for Tubes/Pipes 2"-4" (51.0mm-101.6mm) I.D. |
 |
| |
| These Cutter Heads have 3 to 5 freely pivoted arms, activated centrifugally, which swing out to give access to any part of tube wall. |
| |
| Model No. |
Tube I.D. |
Cone & Flat
Cutter Set (9) |
Arm |
Universal Joint |
| inch |
mm |
Model |
Model |
Model |
| SA-16 |
2 |
51.0 |
SAFC-1 |
SAA-1 |
SAUJ-1 |
| SA-18 |
2.1/4 |
57.1 |
SAFC-2 |
SAA-2 |
SAUJ-2 |
| SA-20 |
2.1/2 |
63.5 |
SAFC-2 |
SAA-2 |
SAUJ-2 |
| SA-22 |
2.3/4 |
70.0 |
SAFC-3 |
SAA-2 |
SAUJ-2 |
| SA-24 |
3 |
76.2 |
SAFC-3 |
SAA-2 |
SAUJ-2 |
| SA-28 |
3.1/2 |
88.9 |
SAFC-4 |
SAA-2 |
SAUJ-2 |
| SA-32 |
4 |
101.6 |
SAFC-5 |
SAA-3 |
SAUJ-2 |
|
| Above prices are for Tool Heads with 3 Pivoted Arms with 3 Core Cutters and 6 Flat Cutter but without U-joint. |
| |
 |
