| Wheel Brush Tools |
|
|
|
|
| Wheel Brush Tools 1" & UP I.D. |
| Circular Brush Tools for Straight Tubes |
 |
| |

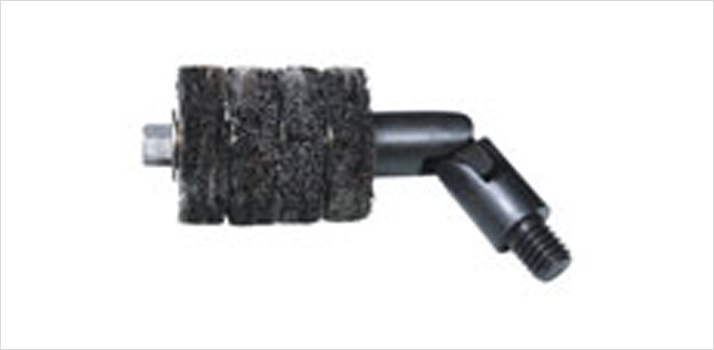

| These tools consist of 4 stainless steel circular brushes that are mounted on a shaft and connected to a Universal Joint. These tools are used to clean soft to medium scales. Replacement circular brushes can be ordered when wear starts. |
| |
| Straight Tube I.D. |
Circular Brush
Tool Model |
Brush O.D. |
Spare Brush
Model
(4 needed) |
Spare
Universal Joint
Model |
| inch |
mm |
inch |
mm |
| 1.1/8-1.5/16 |
28.6-33.3 |
CBTS-1125 |
1 |
25.4 |
CBSB-1125 |
UCT-1063 |
| 1.3/8-1.9/16 |
35.0-39.7 |
CBTS-1375 |
1 1/4 |
31.7 |
CBSB-1375 |
UCT-1063 |
| 1.5/8-1.13/16 |
41.3-47.1 |
CBTS-1625 |
1 1/2 |
38.1 |
CBSB-1625 |
UCT-1063 |
| 1.7/8-2.1/16 |
47.6-52.6 |
CBTS-1875 |
1 3/4 |
44.5 |
CBSB-1875 |
UCT-1250 |
| 2.1/8-2.5/16 |
54.0-58.7 |
CBTS-2125 |
2 |
51.0 |
CBSB-2125 |
UCT-1250 |
| 2.3/8-2.9/16 |
60.3-65.1 |
CBTS-2375 |
2 1/4 |
57.1 |
CBSB-2375 |
UCT-1250 |
| 2.5/8-2.13/16 |
66.7-71.6 |
CBTS-2625 |
2 1/2 |
63.5 |
CBSB-2625 |
UCT-1250 |
| 2.7/8-3.1/16 |
73.0-77.8 |
CBTS-2875 |
2 3/4 |
70.0 |
CBSB-2875 |
UCT-1250 |
| 3.1/8-3.5/16 |
79.4-84.2 |
CBTS-3125 |
3 |
76.2 |
CBSB-3125 |
UCT-1250 |
|
|
| Note : For larger sizes, please enquire. |
| |
| |
| Circular Brush Tools for Curved Tubes |
 |
| |

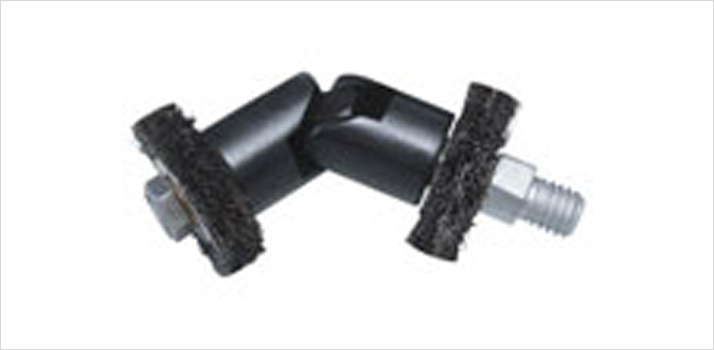

| These tools consist of 2 stainless steel circular brushes that are mounted onto a Double Universal Joint for maximum flexibility. These tools are used to clean soft to medium scales. Replacement circular brushes can be ordered when wear starts. |
| |
| Curved Tube I.D. |
Circular Brush Tool Model |
Brush O.D. |
Spare Brush Model
(2 needed) |
Spare
Universal Joint Model |
| inch |
mm |
inch |
mm |
| 1.1/4-1.7/16 |
31.7-35.6 |
CBTC-1125 |
1 |
25.4 |
CBSB-1125 |
UCT-1500 |
| 1.1/2-1.11/16 |
38.1-42.9 |
CBTC-1500 |
1.1/4 |
31.7 |
CBSB-1375 |
UCT-1500 |
| 1.3/4-1.15/16 |
44.5-49.2 |
CBTC-1750 |
1.1/2 |
38.1 |
CBSB-1625 |
UCT-1500 |
| 2-2.3/16 |
51.0-55.6 |
CBTC-2000 |
1.3/4 |
44.5 |
CBSB-1875 |
UCT-1250 |
| 2.1/4-2.7/16 |
57.1-61.9 |
CBTC-2250 |
2 |
51.0 |
CBSB-2125 |
UCT-1250 |
| 2.1/2-2.11/16 |
63.5-68.3 |
CBTC-2500 |
2.1/4 |
57.1 |
CBSB-2375 |
UCT-1250 |
| 2.3/4-2.15/16 |
70.0-74.6 |
CBTC-2750 |
2.1/2 |
63.5 |
CBSB-2625 |
UCT-1250 |
| 3-3.3/16 |
76.2-81.0 |
CBTC-3000 |
2.3/4 |
70.0 |
CBSB-2875 |
UCT-1250 |
| 3.1/4-3.9/16 |
82.6-90.6 |
CBTC-3250 |
3 |
76.2 |
CBSB-3125 |
UCT-1250 |
|
|
| Note : For larger sizes, please enquire. |
| |
 |
